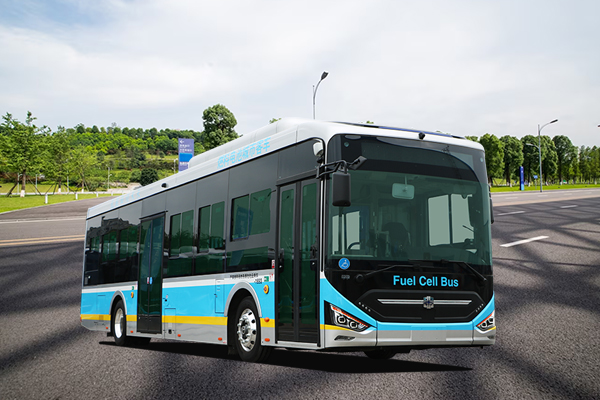

Hydrogen Fuel Cell Electric Bus

Overall Parameter Model LCK6126FCEVG
L*W*H (mm) 12000*2550*3450/12000*2500*3450
Inner height(mm) 2220
Wheelbase (mm) 5600
Front/rear suspension (mm) 2650/3250
Approach/departure (º) 8/8
Gross Weight(kg) 18000
Capacity (seats) 33 or 38
Max. Speed (km/h) 69
Unladen mass(kg) 12500
Electric Motor Manufacturer Weichai
Drive type Direct drive
Power(KW) 100/200
Fuel Cell System Manufacturer Weichai
Power(KW) 60
Capacity Per Cylinder (L) 140
No. of Cylinder 8
Extent Battery Manufacturer CATL/BYD
Extent Battery Capacity (Kwh)
Chassis Front axle Disc Brake
Rear axle Disc Brake
Suspension Air suspension 2/4
Steering Integral power steering
Braking Front and rear disk brake, WABCO ABS
Tire 275/70R22.5x6
Battery/Dynamo 120Ah×2
Others Air Dryer, Condenser (Electric heating).
Body Bodywork Rectangle steel tube welding, monocoque, electrophoresis, low floor or low entry
Interior trim PVC
Door Front and rear double door, inner swing, pneumatic control
Side windows /Wind screen Side sliding windows, laminated windshield
Rearview mirror Manual rearview mirror, inner view mirror, Rearview Camera
Low voltage Electric system Front & rear electronic destination signs, CAN Instrument, DVR, remote monitor system
A/C 32000Kcal
Audio-visual FM player
Lighting Front and rear combined lamps
Wiper Electric wiper, with washer
Seats Urban city bus seats
Paint High quality paint
Others Auto extinguisher in the battery compartment, electric clock, front & side driver's sunshade
