Cruise

Descriptions of Cruise
(Passenger Bus, Tour bus, Commuter Bus, Group Bus)

1. Cruise ranges of passenger carrying vehicles are commonly equipped with 44-54 seats
2. CATIA technology used to well conduct 3G design and ensure the vehicle run freely with a well-arranged structure.
3. Both front and rear part of the vehicle are embossed with diverse patterns, thus allowing a smooth line, very beautiful and magnificent appearance
4. Based on ANSYS, dynamic and static finite-element analyses are given to the whole vehicle frame, thus providing a lightweight body and low fuel consumption
5. The PSA SYSTEM simulated software is used to provide a proper and accurate configuration on diesel engine and axle, thereby ensure the vehicles have superior performance as well as high fuel efficiency

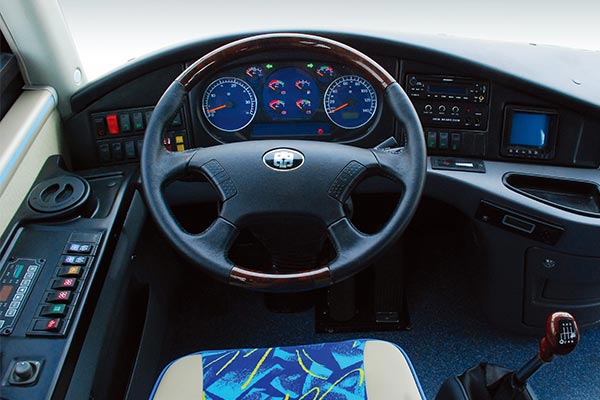

6. Cab is designed out of the ergonomic considerations, which does offer drivers maximum comfort

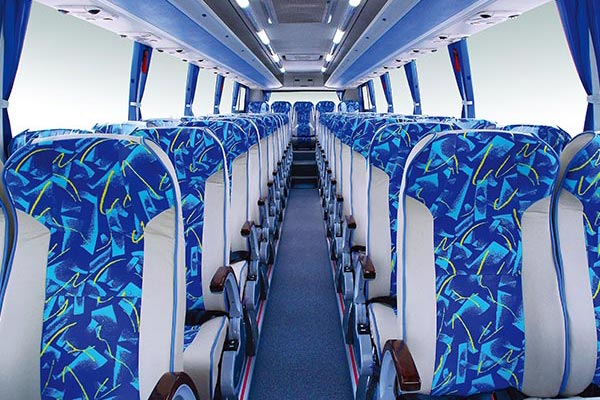

7. The interior colors are professionally designed to offer more sense of warmth and comfort
8. Improvement on the vehicle size gives an extra roomy interior space
9. Parts are basically environmental friendly and recyclable
10. Employment of integrated CAN bus technology and imported waterproof plugging devices is very helpful in reducing the error frequency of electrical elements and detecting these errors
11. The automatic air conditioner is capable of providing a desired temperature

Specifications of Cruise
(Passenger Bus, Tour bus, Commuter Bus, Group Bus)
Model No. LCK6107H LCK6117H LCK6118H LCK6120HT LCK6125H
Total Ref. Length*
Width*
Height
(mm)
10500ⅹ2500
ⅹ3530
10980ⅹ2500
ⅹ3580
11565ⅹ2500
ⅹ3700
11990ⅹ
2540ⅹ
3430
11990
ⅹ2540
ⅹ3700
Max. Weight(kg) 14660 15350 17000 17500 17800
Rated Seating Capacity (persons) 24-49/
(43+1)
49+1+1 24-55/49+1 24-67/53+1 24-55/
53+1
Max. Speed
(km/h)
120 120 120 120 120
Diesel Engine Ref. Model. WP6.240/
YC6J245-30
WP6.240/
YC6J245-30
WP10.300N/
YC6G270-30
YC6G270
-30
WP10.
336N/
YC6L330
-30
Manuf-
acturer
Weichai/ Yuchai Weichai/ Yuchai Weichai/ Yuchai Yuchai Weichai/ Yuchai
Max. Power Capacity
(KW)
176/180 176/180 221/199 199 276/243
Torque 900/890 900/890 1080/1390 1080 1500/
1280
Chassis Ref. Standard Configuration Standard Configuration Standard Configuration Standard Config-
uration
Standard Confi-
guration
Gear Box QJ805 S5-120 S6-90 QJ1205 S6-160
Front and Rear Axle 5T, 9.5T 5.5T, 11T 5.5T, 11T 5.5T,11T 6.5T , 13T
Suspension Laminated
Leaf-spring
(Front 8Rear11)
Laminated
Leaf-spring
(Front 8Rear11)
Laminated Leaf-spring
(Front 9Rear11)
Laminated
Leaf-spring
(Front 10Rear11)
Laminated
Leaf-
spring
(Front 10Rear11)
Brake Dual-Circuit Brake, Drum Brake Dual-Circuit
Brake,
Drum Brake
Dual-Circuit Brake, Drum Brake Dual-Circuit
Brake,
Drum Brake
Dual-
Circuit Brake,
Drum
Brake
Tire 11R22.5 11R22.5 11R22.5 11R22.5 295/
80R22.5
Model No. LCK6109HEV
Length*width *height (mm) 10500*2500*3580
max weight(kg) 15000
Passenger seats 24-38
max speed(km/h) 90
Engine model ISBE185
manufacturer Cummins
Max power (kw) 136/2500
Max torque(N.m) 700/1500
gear box Eaton AMT
Front Axle 5.5T
Rear Axle 11T
suspension frame Air suspension/Leaf spring suspension
Brake system Dual circuit brake, drum brake
Tire 275/80R22.5

Established in 1958, we are dedicated to the designing and production of Cruise buses. As a combination of BOVA technologies and superior raw material, our Cruise buses are of high quality, fast speed and reasonable prices. Therefore, they are exported to many countries like Spain, Argentina, Russia, USA and more. Zhongtong Bus is the "BAAV Bus Builder of 2004" and "BAAV Best Appearance of 2007". You can certainly find a high quality and nice looking bus with us.
