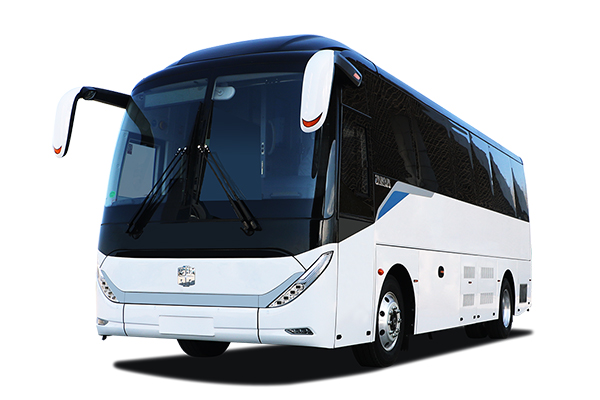

6909H Coach (Spring)

The 6909H is Zhongtong’s fifth-generation mid-size luxury customizable multi-purpose coach, representing a new generation of mid-size touring coaches. With a new design language and exterior styling, combined with innovative and premium interior design, the vehicle has been comprehensively upgraded in intelligent systems, comfort, power performance, energy efficiency, safety, and driving experience. This coach bus ushers in a new era of comfortable travel and advances passenger transport services into a new stage.

Features

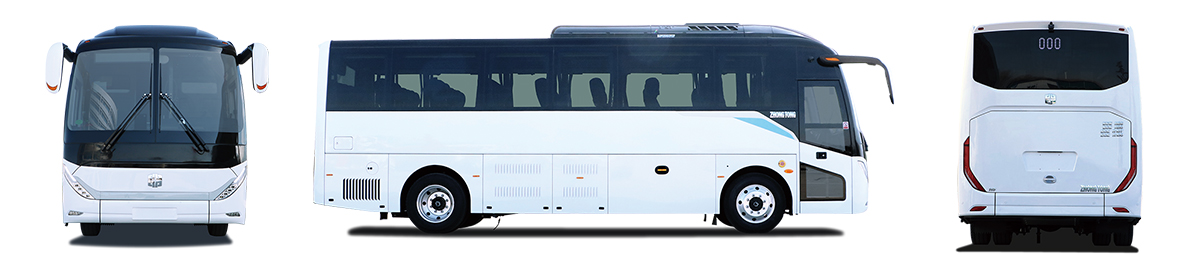

  • A brand-new exterior design with a simple yet elegant style, featuring a streamlined front structure that minimizes aerodynamic drag

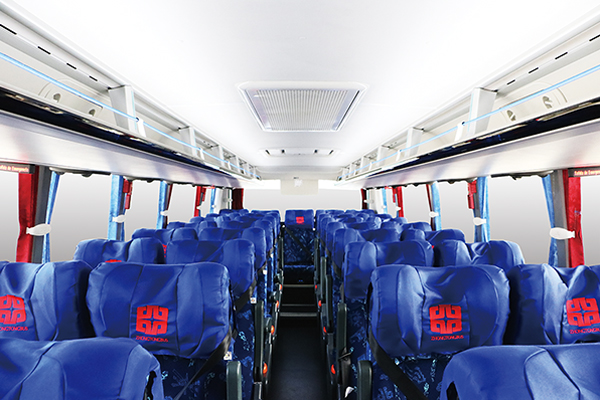

  • Luxurious integrated front and rear molded ceiling design, creating a unified and refined cabin environment

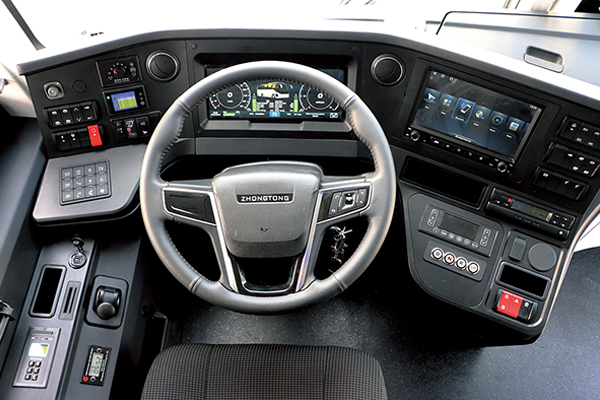

  • Upgraded dashboard with a wrap-around button layout, ensuring convenient access and more ergonomic operation, enhancing the driving experience
  • Standard configuration includes a 10.1-inch intelligent central control display, digital CAN-bus instrument cluster, and intelligent digital power distribution system
  • Dual-zone starlight-style LED lighting with two-level control enables separation of the driver and passenger areas without affecting driving
  • Equipped with a highly reliable ABS system, improving lateral stability and steering control during braking
  • Pass-through luggage compartment design provides larger storage capacity, allowing more luggage to be carried easily
Specifications
Model LCK6909H6Q1 Engine (Brand/Model) WP7H270E62
Rated power (kW) 199 Max. torque (N·m) 1100
Emission standard China VI Rated passenger capacity 24-40 (customizable)
Length (mm) 8990 Gross vehicle weight (kg) 12900
Width (mm) 2540 Front/rear overhang (mm) 1900/2790
Height (mm) 3365/3430 (customizable) Approach/departure angle (°) 13/10
Interior height (mm) 1930 Max. speed (km/h) 100
Wheelbase (mm) 4300 Tyre size 255/70R22.5/10R22.5
Luggage compartment volume (m³) ≤4.7 Max. seating capacity 39+1(2+2)/26+1(2+1)
Category Item Description
Body structure Frame type Monocoque (integral body)
Floor type Low floor (sunken floor)
Running system Suspension Imported 6 airbag air suspension, rear suspension with C-type beam
Axle (maintenance-free) Integrated bearing unit maintenance-free wheel hub
Tyres 255/70R22.5/10R22.5
Rims Steel/aluminum rims
