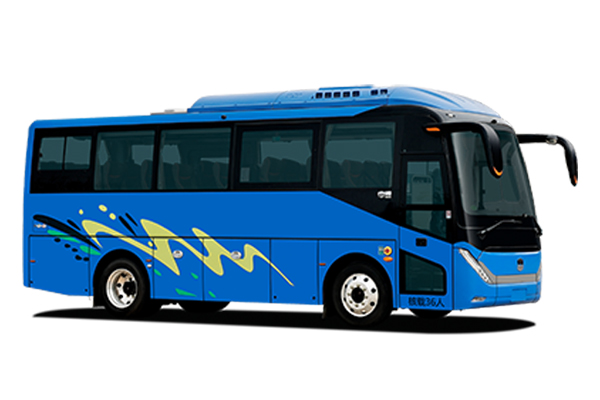

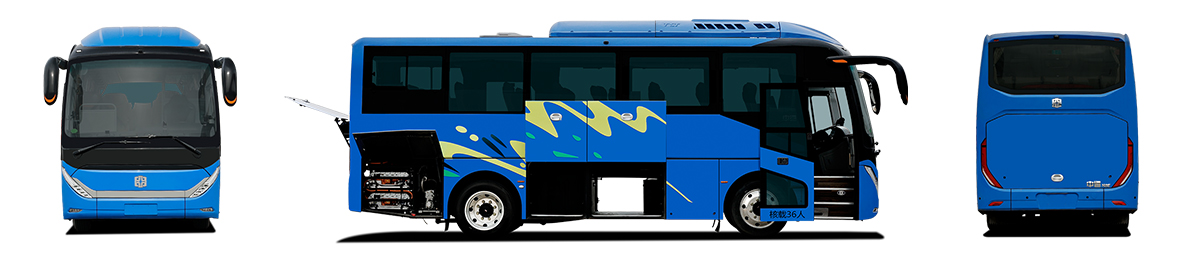

6829H Coach (Spring)

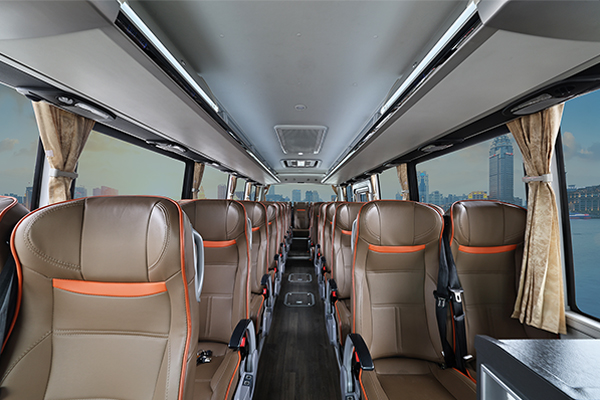

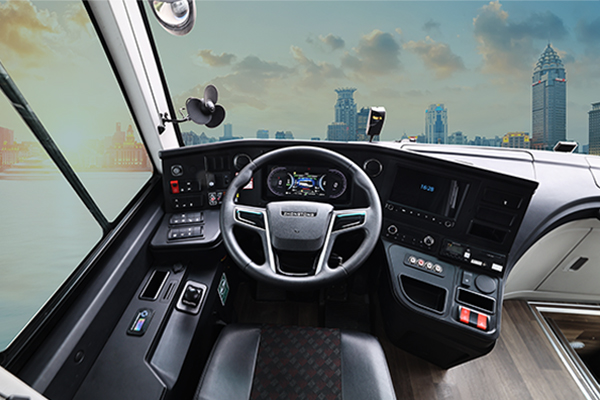

The 6829H coach draws on the design elements of the H-series, featuring a simple, modern, and stylish design that combines modern aesthetics for an outstanding visual appeal. The interior layout has been optimized and upgraded, incorporating ergonomically designed seats that improve operational efficiency while enhancing passenger comfort. Adopting a user-centric design language, the coach bus emphasizes technology to deliver a pleasant driving and riding experience, making operation easier and enhancing driving safety.

Features
  • Equipped with a premium powertrain combination of a Weichai brand engine, fast gearbox, and handle axle, providing a fully integrated power solution. The vehicle incorporates advanced integrated control technologies to ensure efficient, energy-saving, and reliable operation.
  • The maintenance-free axle features an optimized structural design, delivering stable and dependable performance, a long service life, and reduced maintenance requirements, thereby lowering both time and cost.
  • The entire vehicle adopts professional sound insulation and noise reduction measures. Sound-absorbing materials are added to the roof, side panels, and engine compartment, significantly reducing interior noise levels.
Specifications
Model LCK6829H6Q1 Engine (Brand/Model) Weichai WP5NQ245E62
Rated power (kW) 177 Max. torque (N·m) 850
Emission standard China VI Rated passenger capacity 24-36
Length (mm) 8245 Gross vehicle weight (kg) 12200
Width (mm) 2540 Front/rear overhang (mm) 1900/2445
Height (mm) 3365 Approach/departure angle (°) 13/10
Interior height (mm) 1930 Max. speed (km/h) 100
Wheelbase (mm) 3900 Tyre size 255/70R22.5
Luggage compartment volume (m³) ≤3.6 Max. seating capacity 35+1
Category Item Description
Body structure Frame type Monocoque (integral body)
Floor type Low floor (sunken floor)
Power system Powertrain WP5NQ245E62 + fast gearbox WP4.6NQ220E50 + fast gearbox
Running system Suspension 6 airbag air suspension
Axle (maintenance-free) Integrated bearing unit maintenance-free wheel hub
Tyres 255/70R22.5
Rims Steel/aluminum rims
