Luxury Business

LCK6720DQ

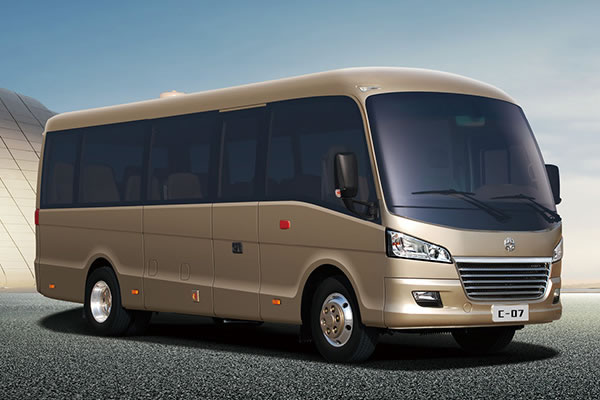

LCK6720DQ luxury business bus is designed cooperatively by Zhongtong and well-known design companies in Europe, with a vigorous appearance. The high-precision fully-stamped skin has greatly added to its beauty. This bus is equipped with the engine from well-known brand, providing strong power for long-distance driving. It is suitable for business reception, tourism, and group transport.

Bus parameters total length (mm) 7200 Engine model ISF3.8S4154
total width (mm) 2140 manufacturer Foton/ Cummins
total height (mm) 2730/2880 position/fuel front/diesel
inner height (mm) 1970 type straight 4-cylinder, 4-stroke, water cooling, turbocharging, intercooling
wheelbase (mm) 4100 max power (kw) 115/2600
front/rear suspension (mm) 1180/1920 max torque (N.M) 500/1200-1900
approach angle/departure angle (º) 20/15 displacement (ml) 3.76
height of single step (mm) 370 cylinder diameter × stroke (mm) 107×124
max total mass defined by factory (kg) 7700 emission standard Euro IV standard
rated capacity (person) 10-23 (standard 16+1) capacity of luggage compartment (m3) 0.55
max speed (km/h) 130 (speed limit 100)
Item Standard configuration Optional configuration
Chassis gearbox ZF6S500
Parameters clutch φ362, single plate, dry, imported clutch
front axle Jinben independent front axle, 2.7T
rear axle Fangzheng 5.5T, improted gearbox, SKF maintenance-free wheels
suspension air suspension with 2 airbags (2 for front/2 for rear)
steering recirculating type ball integral power steering gear
brake double circuit brake; front/gear disc brake; EBS electronically controlled braking system; ESP electronic stability control system
fuel tank 100L
tire Michelin 215/75R17.5 tires (7); Aluminum rims
accumulator/alternator 120Ah /160A

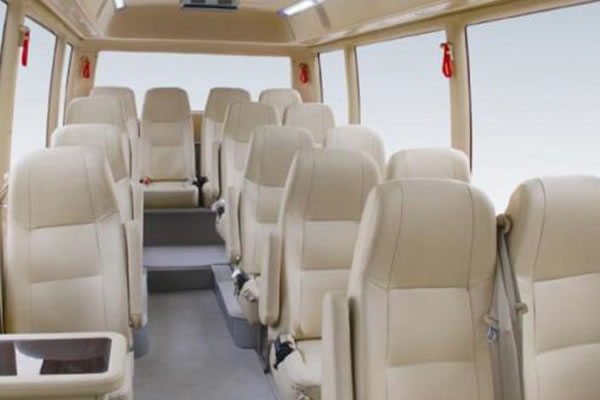

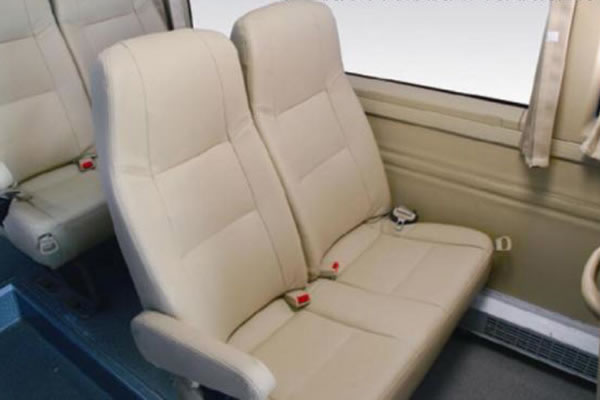

seat 2+1 layout; 16+1 seat; luxury business seat; 2-point safety belt for each seat 19+1 business seat, VIP seat
