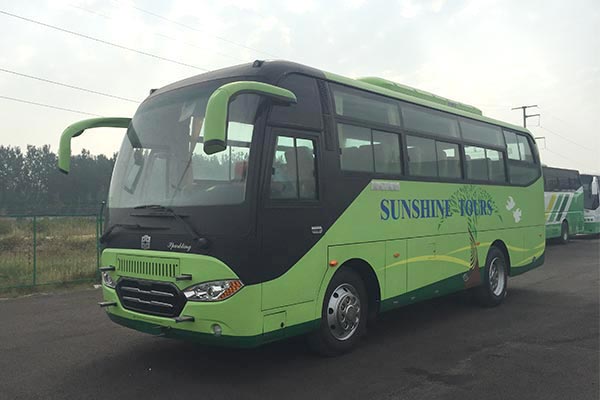

LCK6840T Stock Bus

Overall specification Overall dimension (mm) 8420 Engine Engine model EQB180-20
Overall width (mm) 2420 manufacturer Cummins
Overall height (mm) 3290 Engine position Front
Body inside height (mm) 1920 Type 4 cylinder in line, water cooling turbocharged, inter-cooling
Wheel base (mm) 4000 Max power(kw/rpm) 118
Front/rear overhang (mm) 1830/2590 Max torque(N.m/rpm) 520
Approach/departure (º) 12/9 displacement(L) 4.2
First step height (mm) 420 Bore/stroke mm 110X112
Max G.V.W.kg 9810 fuel Diesel
Seats capacity (person) 34+1 Emission standard Euro II
Max. speed km/h 100 Steering wheel position LHD
Luggage cabin m3 4.8
Items Standard Equipments
Chassis Data Manufacturer Made in China
Gear box manual 6+1 speed
Clutch Single plate, dry type, ∮350
Front axle 4.2 ton
Rear axle 7 ton
Suspension Leaf spring suspension, front 12/rear12
Steering Integral power steering
Brake Dual-circuit air braking, drum brake
Fuel tank 200L
Tyre 8.25-20
Battery /dynamo 6-QA-120 / 100A
Others Air dryer, Clutch booster, air power-assisted parking brake
Bus Specification Body construction Semi-integral, weather-proof steel frame, Sparkling model
Interior triming Shaped and soft interior trimming
Door & door pump Aluminum out swing door with remote control lock, domestic door pump
Window, windscreen Sliding side windows; side and rear window toughened safety glass, front rubber-laminated windscreen
Rear view mirror Manual motion review mirror
A/C system 18000Kcal/h
Video system MP5 player with microphone and amplifier, 17' LCD
Lamps New type combination lamp front/rear, high breaking lamp
Front window screen wiper Electric wiper
Luggage flaps Aluminum overturning opened luggage flaps
Seats 2+2 layout 34 adjustable clothing seats ZTZY3192 with belts, arm rest, driver seat ZTZY1021
Paint High quality paint
Others Anti-slipping floor leather, side window contain, front sun shade screen, Fire extinguisher, air horn,bull bar
