LCK6125A Coach (Compass)

This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coach's safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.

Overall specification overall dimension (mm) 12500 Engine engine model L360 20
overall width (mm) 2550 manufacturer Cummins (China)
overall height (mm) 3850/3710 engine position Front
body inside height (mm) 1940 engine type 6 cylinders in-line, turbocharged with intercooler
wheel base (mm) 5800+1350 max power (kw) 264
front/rear overhang (mm) 2340/3150 max torque (N.M) 1480
approach/departure (º) 10/13 displacement (l) 8.9
first step height (mm) 400 bore/stroke mm 114X144.5
max g.v.w.kg 21500
seats capacity (person) 61+1/ 70+1
max speed (km/h) 120
luggage cabin (m3) 10.4
Items Standard Optional
Chassis specification manufacturer made in Zhongtong
gear box S6-160, ZF technology, six gears
clutch coil spring, Ø430
front axle 7.5t front axle
rear axle 13t rear axle
third axle 5t third axle
suspension multi-leaf spring suspension
steering integral assistant power steering
brake dual circuit air braking, drum brake
fuel tank 400L+400L
tyre 315/80R22.5
battery /dynamo 2×12V/195Ah / 28V /150A+140A
others brake slack auto adjuster, electric retarder, ABS

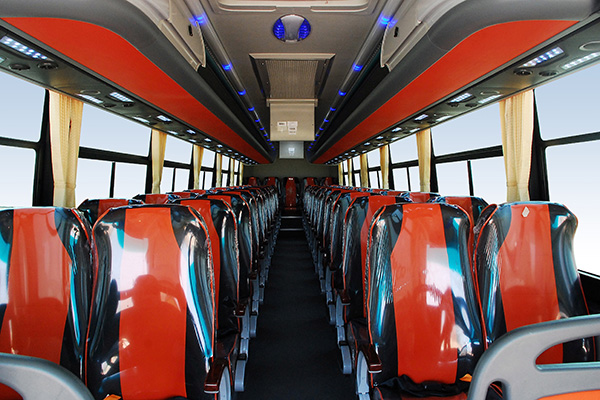

seat adjustable seats, ZTZY3210 2+2 layout 61+1; fixed seats, ZTZY3072, 3+2 layout 70+1; driver seat ZTZY1050
