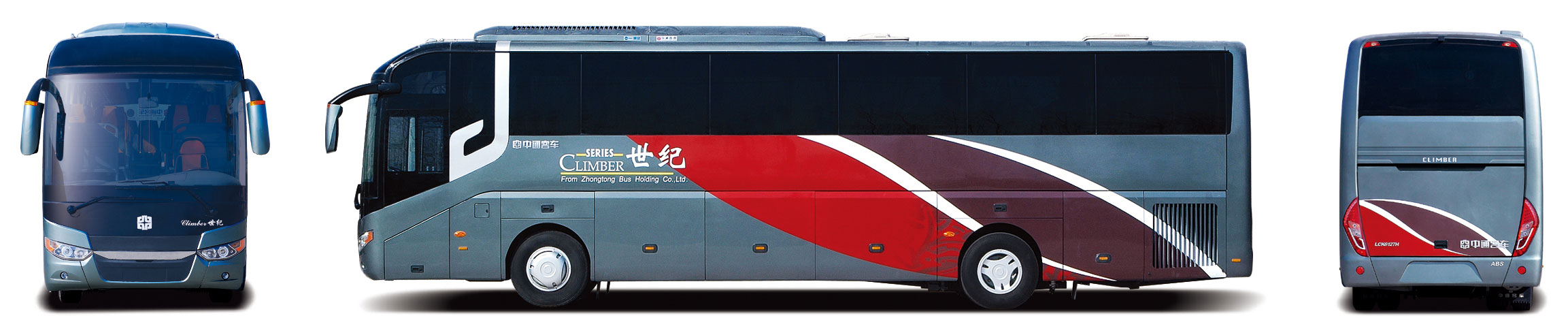

6127H Coach (Compass)

This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coach's safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.

Bus parameters total length (mm) 12590 Engine model ISLe 375 40
total width (mm) 2550 manufacturer Cummins
total height (mm) 3830 position/fuel real
inner height (mm) 2020 type straight 6 cylinder, medium cooling
wheelbase 6400 max power (kw) 275
front/rear suspension (mm) 2800/3390 max torque (N.M) 1550
approach angle/departure angle (º) 8/7.5 displacement (ml) 8900
height of single step (mm) ≤380 cylinder diameter × stroke (mm) 126X130
max total mass defined by factory (kg) 13370/18000 fuel diesel
rated capacity (person) 51+1+1 emission standard European standard 4
max speed (km/h) 120 Certification ISLe375 40, passed the GOSTR certificate
luggage compartment volume (m3) 9 Inner bus model LCK6127HE
Item Standard configuration Optional configuration
Chassis parameters gearbox Fast 6DS 180T 6 speed transmission ZF 6S 1700BO 6 speed box
clutch SACHS φ430, single plate, dry
front axle independent front axle from Jinben, 6.5T
rear axle Dongfeng Dana, 13T
suspension full airbag (6 airbags, 6 shock absorbers)
steering servo steering gear, steering wheel lock
brake double circuit brake; front/gear disc brake; WABCO ABS/ASR, Eddy current retarder
fuel tank 300L+300L, oil circuit preheating, cold start
tire 295/80R22.5 (Double Coin) Michelin
accumulator/alternator 2×12V/200Ah / 28V/140A+150A
Main components Bus frame full bearing structure, concave floor structure noise absorber for rear bottom panel of the middle gate
decorative A type aviation luggage rack, panel with 3 cigarette lighters B type luggage rack
door and door pump Aluminum door, remote controlled door lock, pneumatic front/middle/back passenger door
side window / windscreen bonded hollow side window; fully sealed; transparent glasses for driver cab and door window; black glass for others; laminated front glass; toughened rear glass; shade curtain
rear view system electrically defrosting rearview mirror; three-lens color LCD screen; monitor (with recording function)
air conditioner 30000Kcal/h (Bitzer compressor)
heater system / defroster SPHEROS 35KW, wall-mounted forced heat sink, 8/4 large-power heat sink, plumbing defroster (air intake from outside)
audiovisual system DVD/hard disc machine; 19-inch LCD screen for front door; 17-inch non collapsible LCD screen for middle door; microphone
lamps front combination light, rear combination light, brake light
door hand-operated side-loading compartment door, aluminum door bathroom and driver restroom (7.6m3)

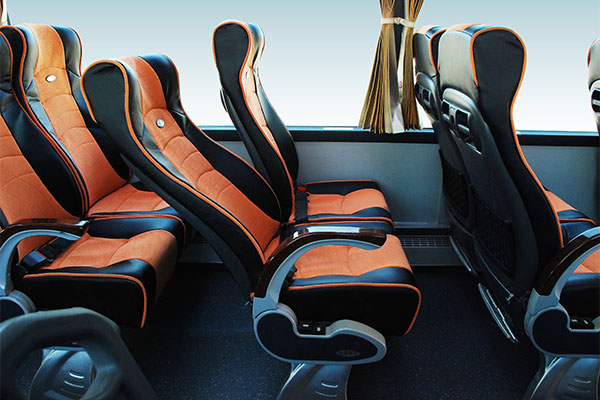

seat ZTZY3210 luxury seat with adjustable pedal, backrest, and armrest; ZTZY1052 driver seat with airbag; safety belt for each seat, ZTZY2070 tourist guide seat ISRI NTS armrest for driver seat
paint solid color paint metallic paint, pearl paint
others automatic fire extinguishing system for engine compartment; GPS interface; dormer; 2 DS265 ventilators; water tank; LED light; 220V power supply (25-30kw); electronic clock; curtain for side window; 24V converter (220V, 220W); Stainless steel fully enclosed decorative cover for tires carpet; driver 's rest compartment; bathroom; cloth curtains; shade curtain; water dispenser
Remark: bus model especially for Russia and Kazakhstan alliance area
