6129H Coach (Magnate)

6129H coach has 6 more seats than other models. That's to say, its profitability is nearly 16% higher than others. The combination of high and large driving space, business class seats, large windows and various quiet technologies makes a comfortable driving. The full bearing structure is made of high-strength steel with press forming technology. The framework features high solidity, high reliability, superior solidity, good resistance to vibration, and high twisting strength. The whole vehicle is designed to be lightweight with the simulation of dynamic performance. The frequency conversion thermal management system allows the energy consumption of our coach to be kept at a low level.

Bus parameter total length (mm) 11990 engine model WD615.44/L360 20/ OM 457LA
total width (mm) 2550 manufacturer Weichai/ DCEC/Cummins/Benz
total height (mm) 3830 position/fuel rear/diesel
inner height (mm) 2030 type straight 6-cylinder, 4-stroke, water cooling, turbocharging, intercooling, direct injection
wheelbase (mm) 6000 max power (kw) 235/254/260
front/rear suspension (mm) 2600/3390 max torque (N.M) 1250/1480/1750
approach angle/departure angle (º) 9/9 displacement (ml) 9726/8900/11970
height of single step (mm) 380 cylinder diameter × stroke (mm) 126×130/114X144.5/128*155
max total mass defined by factory (kg) 18000 emission standard
rated capacity (person) 51+1+5 luggage compartment volume (m3) 9 (through type)
max speed (km/h) 100
Item Standard Optional
Chassis parameter chassis Zhongtong Bus Holding Co., Ltd.
gearbox Qijiang S6-160/Fast 6DS180T, 6-speed gearbox (OM 457LA) Benz GO210-6E (equipped with Benz engine and hydrodynamic retarder)
clutch imported clutch φ430, single plate, dry
front axle Dongfeng Dano, 6.5T Benz F7.5, disc brake
rear axle Dongfeng Dano, 13T (accurate grinding gear, imported bearing) Benz R440 13T, rear axle, disc brake
suspension air suspension with 6 airbags
steering recirculating type ball integral power steering gear ZF8098
brake front-disc rear-drum, ABS (KORMEE), automatic gap adjusting arm, CAMA eddy current retarder WABCO ABS, disc brake for rear axle
fuel tank 300L+300L 235L+235L
tire 295/80R22.5 (double coin) Michelin tire, aluminum alloy wheel
accumulator/alternator 195Ah/150AX2 Prestolite

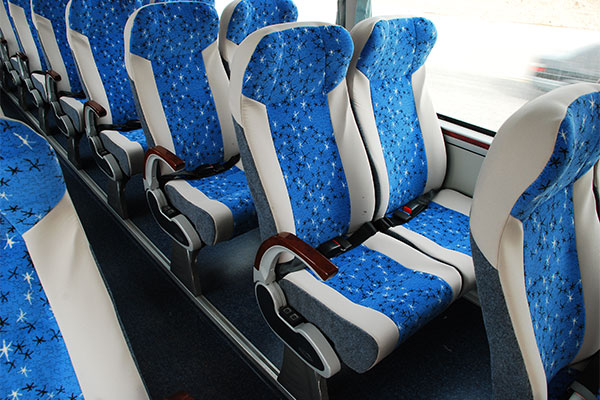

seat 51+1+1+5; Zhongtong ZTZY3210 seat (with lateral movement function); ZTZY1052 driver's seat; safety belt for each seat; safety belt warning system for all seats passenger seat with lateral movement function; adjustable pedal; ZTZY20700 tour guide seat
