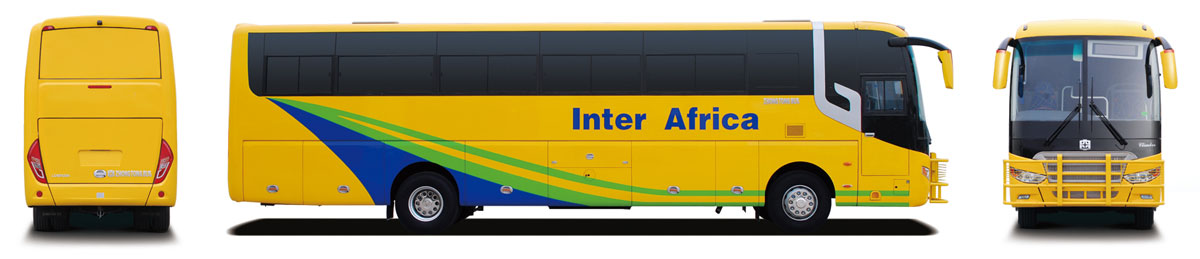

LCK6120A Coach (Compass)

This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coach's safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.

Overall specification overall dimension (mm) 11450 Engine engine model L325 20
overall width (mm) 2550 manufacturer Cummins (China)
overall height (mm) 3850 engine position Front
body inside height (mm) 1940 engine type 6 cylinders in-line, turbocharged with intercooler
wheel base (mm) 5800 max power (kw) 239
front/rear overhang (mm) 2340/3310 max torque (N.M) 1350
approach/departure (º) 9/13 displacement (l) 8.9
first step height (mm) 480 bore/stroke mm 114X144.5
max g.v.w. (kg) 18000 fuel
seats capacity (person) 60+1/ 51+1 steering position
max speed km/h 120
luggage cabin m3 8
Item Standard Optional
Chassis specification manufacturer made in Zhongtong
gear box S6-160, ZF technology, six gears
clutch coil spring, Ø430
front axle 7.5t front axle
rear axle 13t third axle
suspension multi-leaf spring suspension
steering integral assistant power steering
brake dual circuit air braking, drum brake
fuel tank 400L+400L
tyre 315/80R22.5 double coin
battery /dynamo 2×12V/195Ah / 28V /150A+140A
others brake slack auto adjuster, electric retarder, ABS

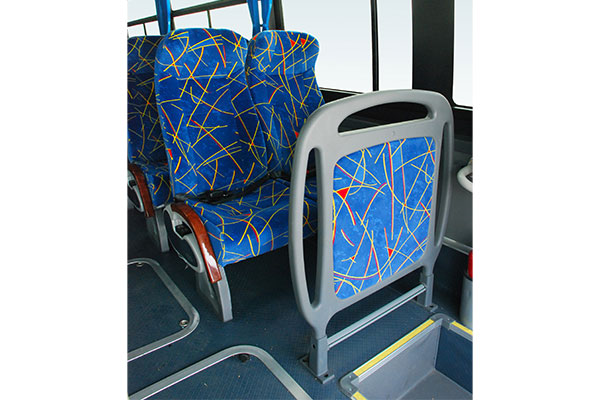

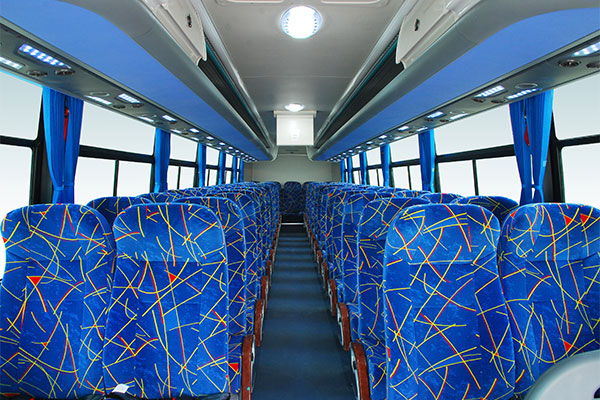

seat fixing type cloth seatsztzy3072, 3+2 layout 60+1, or 2+2 layout 51+1, driver seat ztzy1050
