6115H Coach (Cruise)

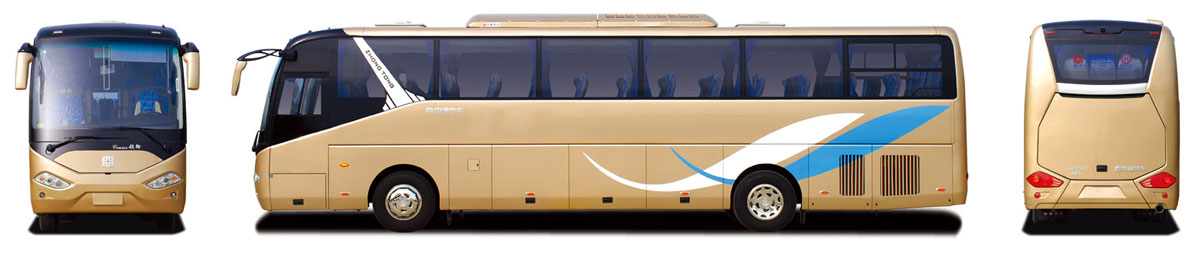

Cruise is a luxury bus series designed for passenger transport and tourism cooperatively by Zhongtong and internationally well-known design companies. Zhongtong pays a lot of attention to travelling comfort. The design of 6115H coach shows the concept of humanity everywhere from driver cab to passenger seat. Cruise buses look elegant and spacious. The operation system is rather reliable and safe. 6115H bus enjoys the advantages of ultra-low power consumption with a scientific matching.

Salient Features
1. Scientific Design and Low Energy Consumption
The whole bus is designed to be lightweight. An internationally advanced vehicle performance simulation system is employed to choose the appropriate engine, chassis and other accessories for the bus, ensuring superior performance and low energy consumption. The optimization of engine air intake and exhaust and fuel flow increasing technology contributes to reduce energy consumption and save cost. Temperature of the engine is controlled within an appropriate range with the constant temperature control system, significantly reducing wear and energy consumption. In addition, the ultra-large luggage compartment provides another profit space for passenger transport companies.

2. Humanized Design

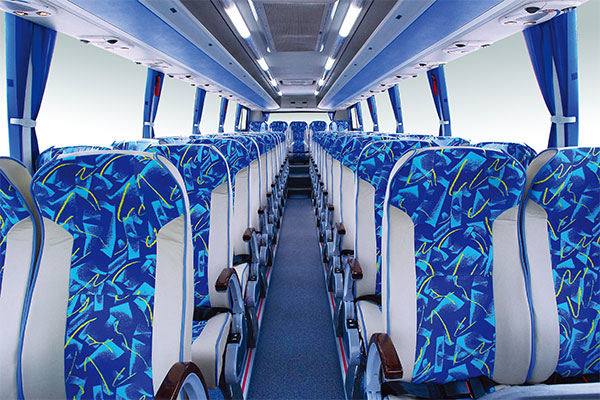

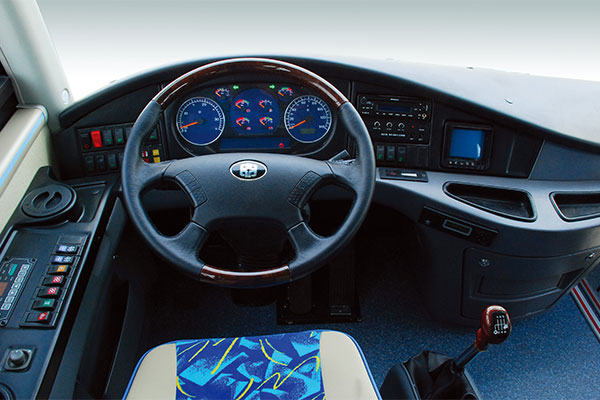

The humanized design penetrates every details of our bus. For example, the electric control rearview mirror can maximize the visual range of driver; the user-friendly driver cab equipped with delicately-arranged dashboard offers a wide view and convenient operation; the inclined vertical plate of step effectively increases the step space, making it more secure for passengers to go upward or downward; the hinge access door installed at the front wall is convenient to be repaired and replaced; The silent air-conditioner and soundproof flooring ensures a quiet driving environment; and the optimized interior space will bring both drivers and passengers a comfortable driving experience.

Bus parameters total length (mm) 11565 Engine model YC6G300-20/L340 20/C300 20/ ISLE4 320/WD615.30
total width (mm) 2500 manufacturer Yuchai/DCEC/DCEC Cummins/Weichai
total height (mm) 3620 position/fuel rear/diesel
inner height (mm) 2060 type straight 6 cylinder, intercooling
wheelbase (mm) 5870 max power (kw) 221/250/221/235/221
front/rear suspension (mm) 2355/3340 max torque (N.M) 1150/1350/1125/1300/1160
approach angle/departure angle (º) 10.0/8.5 displacement (ml) 7800/8900/8300/8900/9726
height of single step (mm) 370 cylinder diameter × stroke (mm) 112X132/114X144.5/114×135/114X144.5/126*130
max total mass defined by factory (kg) 17000 emission standard
rated capacity (person) 24-55 luggage compartment volume (m3)
max speed (km/h) 120
Item Standard configuration Optional configuration
Chassis parameters chassis Zhongtong Bus Holding Co., Ltd.
gearbox Qijiang S6-90 Qijiang S6-150 (L340 20/ISLE4 320)
clutch φ430, single plate, dry, spiral spring, hydraulic booster
front axle Dongfeng Dana, 5.5t
rear axle Dongfeng Dana, 11T, final ratio: 4.875, precisely grinded final reduction gear
suspension multiple leaf spring (front 9, rear 11) air suspension with 6 airbags (imported levelling vale, airbag, shock absorber)
steering recirculating type ball integral power steering gear
brake double circuit air brake, disc brake, WABCO ABS, automatic adjusting arm disc brake on the front axle, KNORR-BREMSE/ KORMEE ABS
fuel tank 160L+160L (behind the front wheels, one on the left, the other on the right) 300L×2 (behind the front wheels, one on the left, the other on the right), the volume of luggage compartment is reduced.
tire 11R22.5 (double coin)
accumulator/alternator 2×12V/195Ah / 28V/150A*2 140A alternator for Cummins engine
seat Zhongtong ZTZY3210 luxury aeronoautic seats (with adjustable armrest and adjustable backrest); ZTZY1050 driver's seat; 49+1+1 safety belt for all seats; lateral movement; pedal; ZTZY2020 tour guide seat; ZTZY1052 driver seat with airbag
