6935H Coach (Sparkling)

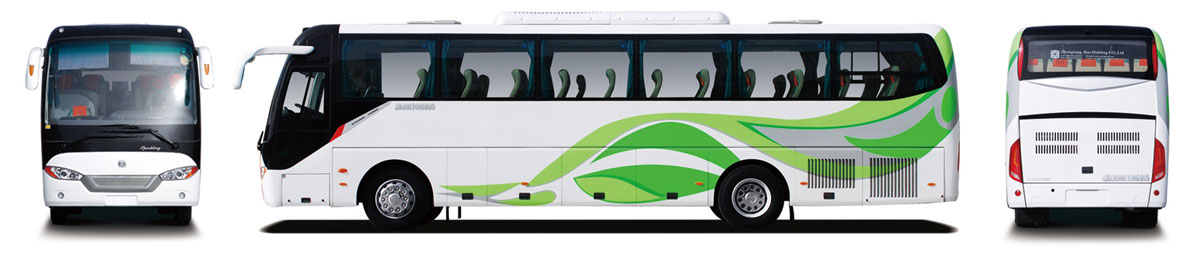

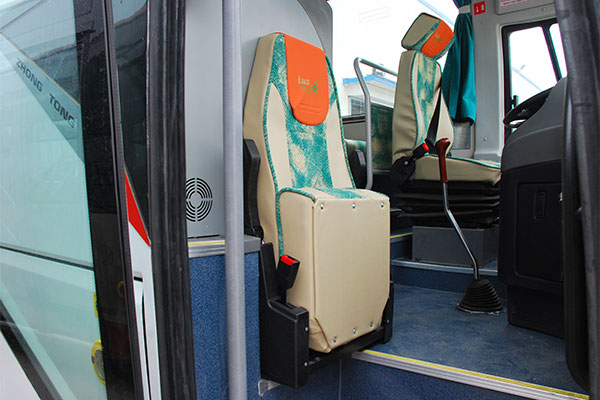

The Sparkling series coach is our new product designed for medium and short distance passenger transport and tourism. Basing on some mature products on the market, it is designed to be more human-friendly. It shows a much better versatility and lower cost. For the bus body, the flat floor makes it easier to cleaned and for passengers to walk on; the overhead air intake system helps to improve the air intake quality of the engine and to make it more economical. For the driver operating part, to add to drivers' comfort and convenience, we have made the shift lever to be separated from the engine cover, and lengthening the lever to increase the arm force. Supported by CATIA, ALIAS and other engineering software, as well as the CAE finite element analysis technique, Sparking coach gains a reliable and reasonable structure, which makes it highly safe. Compared with other similar coaches, its drag coefficient is 5% smaller. The sunken engine is installed under the seats of last several rows to make full use of the interior bus space. The combination of reasonably-arranged chassis, intelligent temperature control system, as well as Zhongtong simulation analysis system, which is competent in simulating the running conditions of vehicles under various typical traffic situations, Sparking series coach can save 5-10% of fuel for users. In addition to the air suspension with six airbags and the bidirectional telescopic shock absorber, there are details of meticulous designs and energy-saving techniques everywhere in the bus, such as the extremely long-life LED lights for all of the bus lights except the high beam. The service life of LED is up to 8 to 10 years, with the energy consumption only 20% of that of ordinary fluorescents.

Bus parameters total length (mm) 9345 Engine model WP7.240E30/YC6J245-30/ ISB6.7E5225B/ISDE245 40
total width (mm) 2480
total height (mm) 3350 manufacturer Weichai/Yuchai/Cummins/DCEC
inner height (mm) 1940 position/fuel diesel
wheelbase (mm) 4600 type inline-six cylinder, four-stroke, water-cooling, intercooling
front/rear suspension (mm) 1970/2775 max power (kw) 176/180/166/180
approach angle/departure angle (º) 11/9 max torque (N.M) 1000/890/850/925
height of a single step (mm) 420 displacement (ml) 7140/6500/6700/6700
max total mass set by factory (kg) 12700 cylinder diameter × stroke (mm) 108×130//105X125/107X124/107X124
rated capacity (person) 37+1+1 emission standard
max speed (km/h) 100
luggage compartment volume (m3) 3.4 (3.9)
Item
Chassis parameters chassis Zhongtong Bus Holding Co., Ltd.
gearbox Qijiang S6-100 Allison T270R optional for ISBE4 +225B
clutch φ395, single plate, dry clutch φ420 dry monolithic clutch for WP7.240E30
front axle 4.2T
rear axle 9T
suspension multiple leaf spring 7/11 air suspension (2/4 airbag)
steering integral power steering
brake double circuit air brake, drum brake, KORMEE ABS automatic gap adjusting arm, front-disc rear-drum brake
fuel tank 200L, behind front axle 300L
tire 10R22.5
accumulator/alternator 165A.h/150A+120A,140A+120A (Cummins engine)
others oil-water separator, dryer, clutch booster, air brake, retarder electromagnetic clutch, centralized lubrication

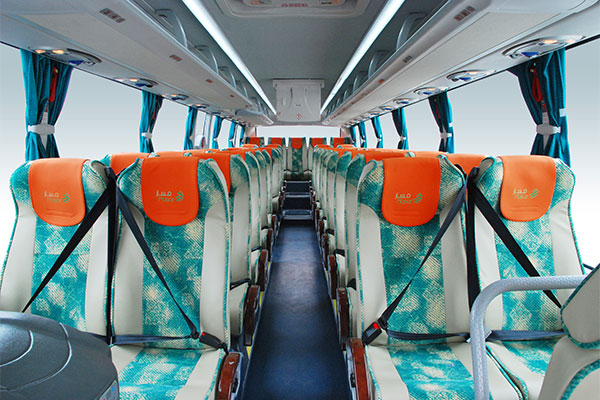

seat 2+2 arrangement; 37+1+1 seats; adjustable ZTZY3170 seat; folding armrest; safety belt for each seat; driver's seat ZTZY1050 lateral movement or pedal; ZTZY2070 tour guide seat
